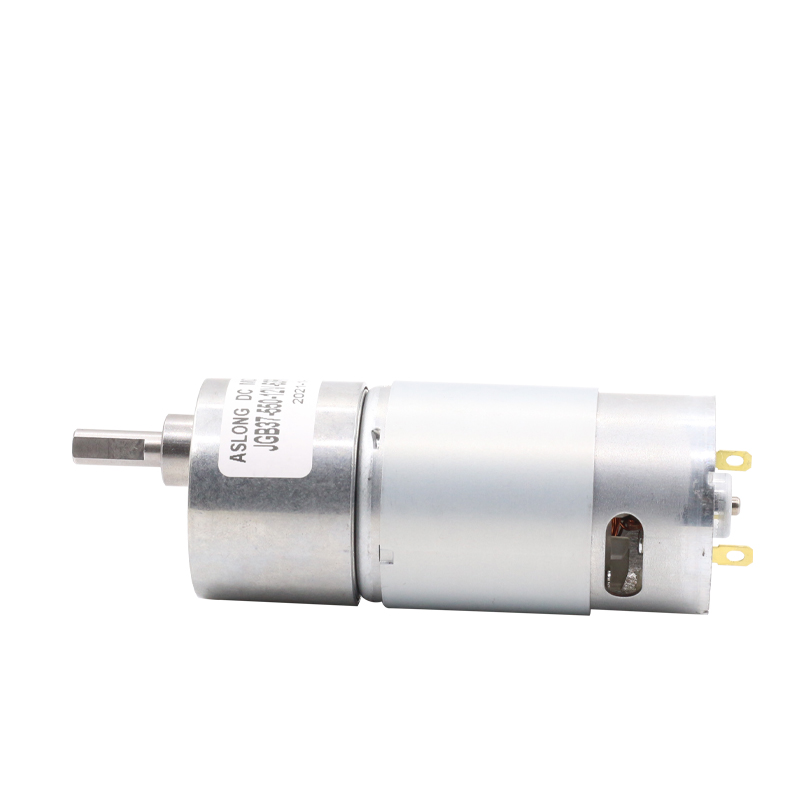

JGB37-550
在线客服
Series : 37 series
Material : pure metal
Brand : ASLONG
Model : JGB37-550
Detail

QQ20161228185523

high torque 12v dc motor

1.Standard Operating Conditions
1-1 Rated Voltage:12v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4Storage Temperature:Temperature range of -20C~+60C
2.Measuring Conditions:
2-1Motor Position:To be place t horizontally when measuring
2-2Power Supply: Regulated DC power supply
--No load speed:7rpm-1280rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.


Note:Pls confirm the parameter and if you want to customize,pls feel free to contact me,i will try my best to support you.

QQ20161228190811

Attention:The baby is a big torque, high power motor and the starting current is a little large, 6V starting flow is around 3A, 12V starting current is about 6A, the starting current will return to normal 1-2A when starting, so you need select high power supply, 6V need be above 5A while 12v need be above 10A. otherwise it can not start the motor!!
